Parts Interactive Map
Parts to reach 117 DBA:
1. Front bumper
2. Fan and shroud
3. Radiator Louver
4. Access platforms
5. Fire suppression platform
6. Exhaust
7. Retarder Louvre outlet
8. Blower Louvre Attenuator
9. Blower Fan D14
10. Blower Cover Set
11. Hood panels
12. Side panels
13. Belly panels
14. Break Cooling Check Mount Bracket
15. Final Drive Cover
Additional parts to meet 112 DBA:
16. Under generator panels
17. Retarder inlet louvre
18. Tray acoustic panel kit
19. HV cabinet acoustic kit
20. Hydraulic and oil pump acoustic covers
21. Blower Y piece acoustic panel kit
22. Side curtains

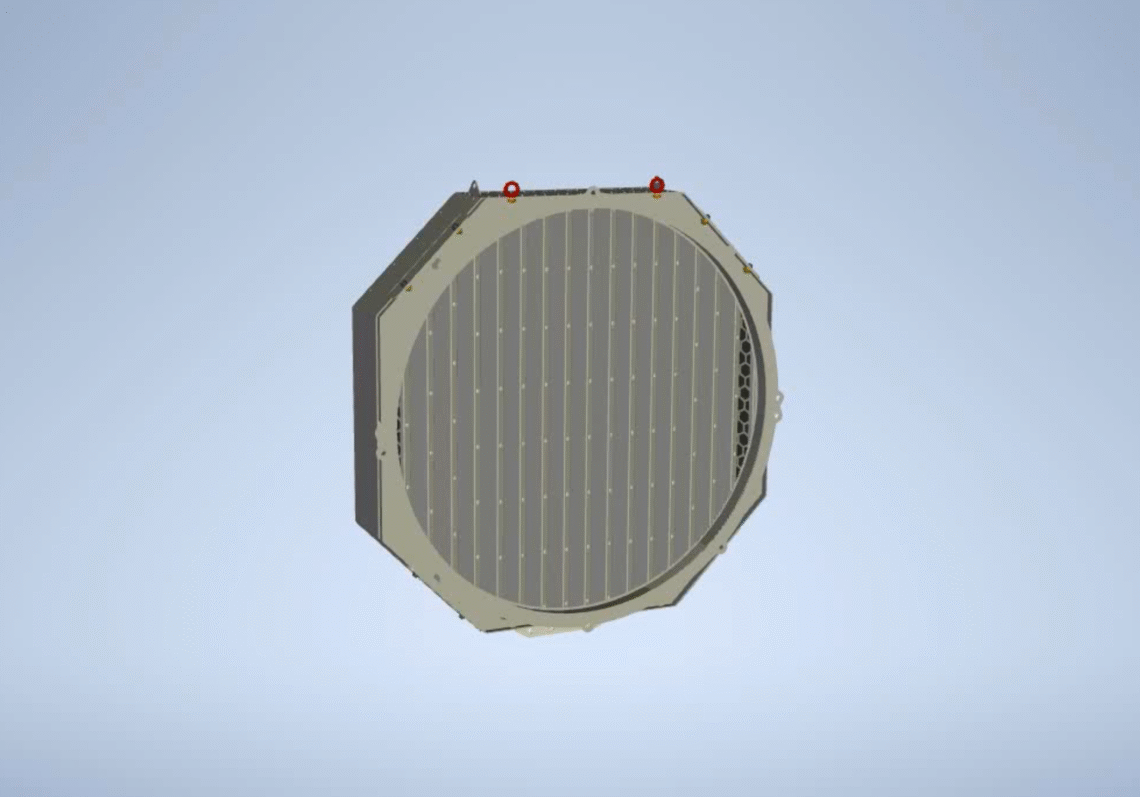

Retarder Louvre Outlet
- Retarder Attenuator

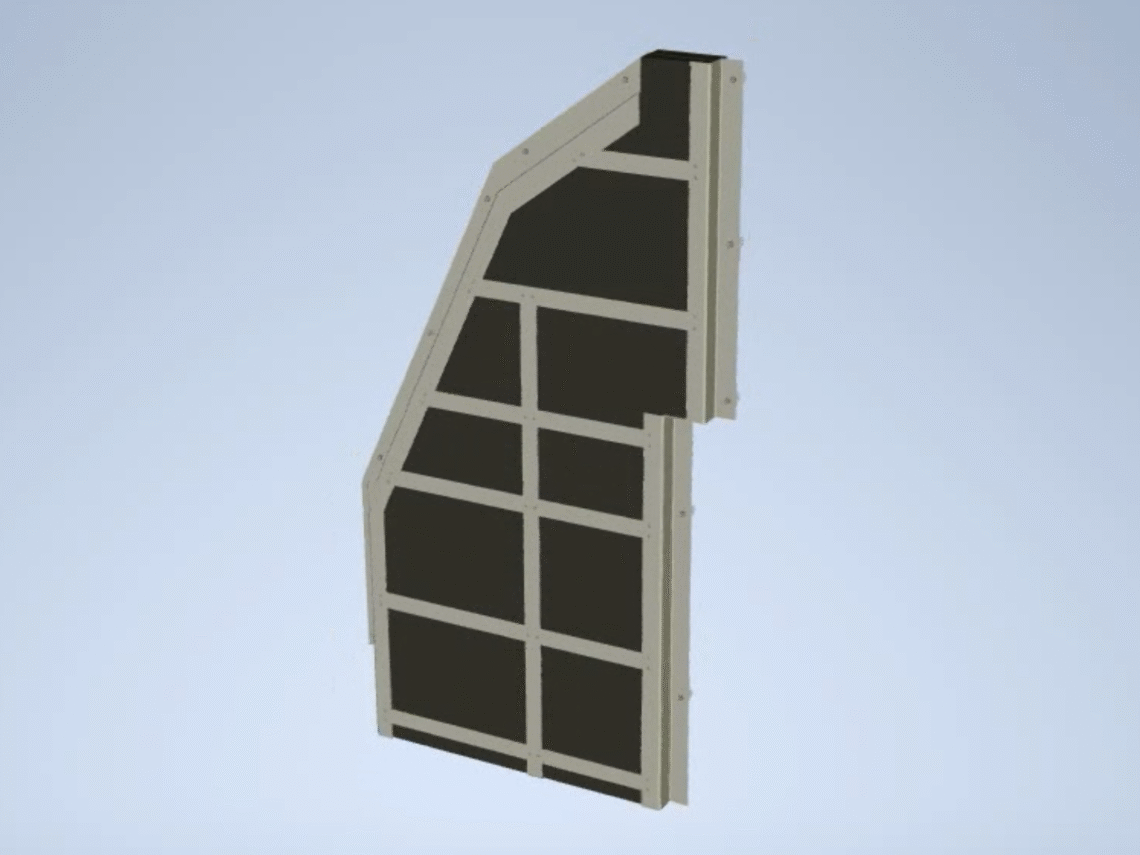

Side Panels
- Engine Side Enclosing Sound Insulated panels
Front Bumper Extension
- To accommodate the Radiator Louvre

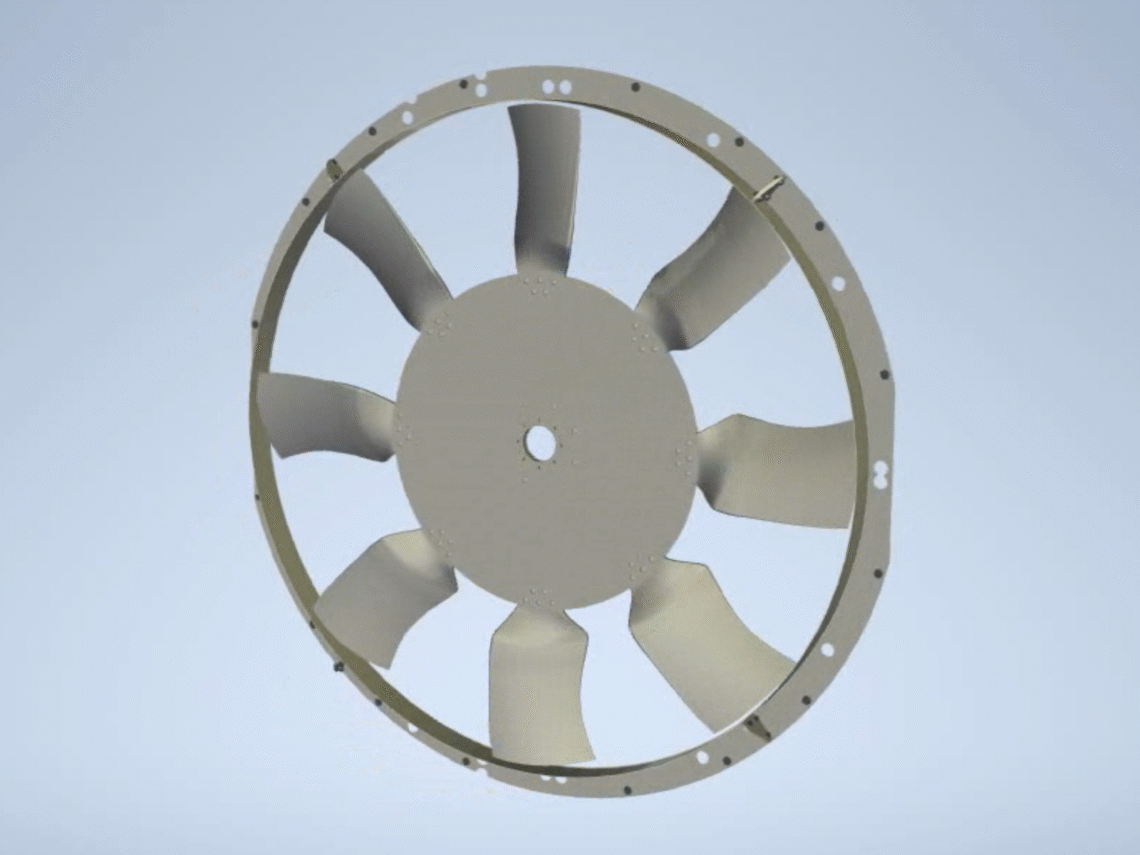

Radiator Fan and Shroud
- High efficiency low noise Fan and Fan Shroud

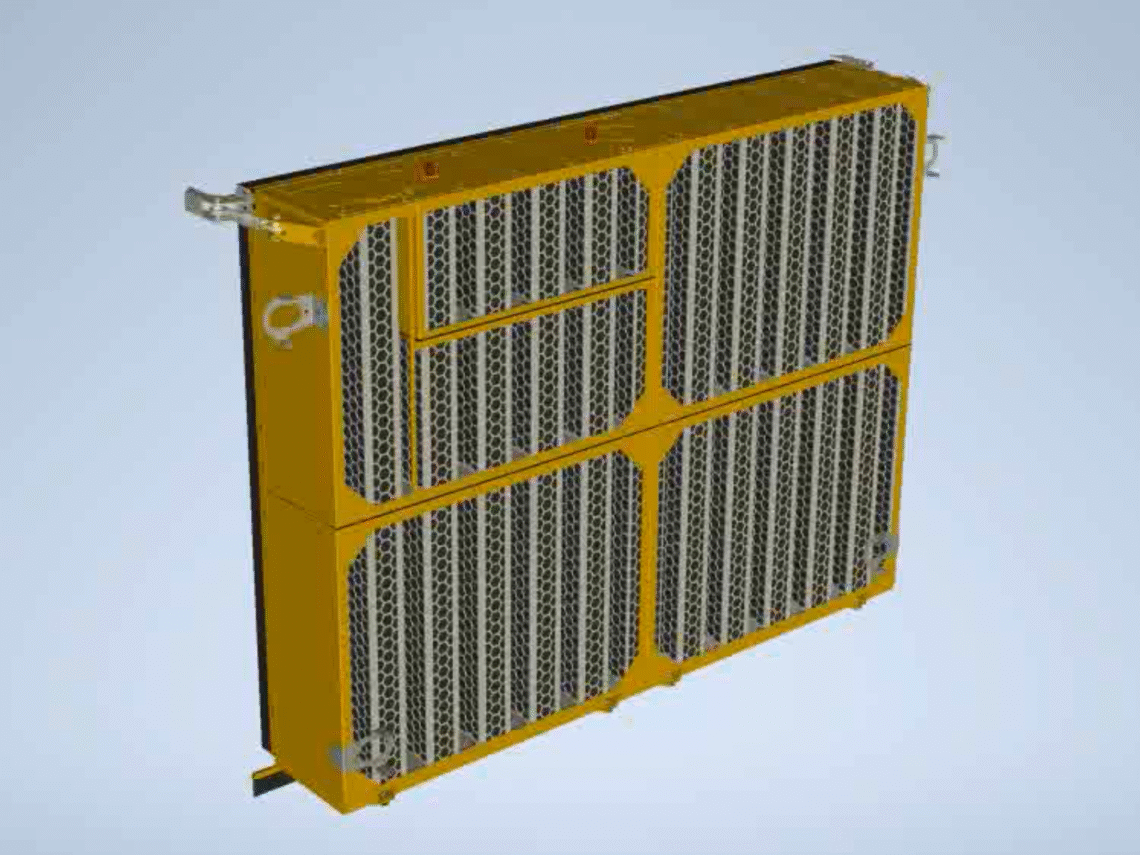

Radiator Louvre Outlet
- Radiator Fan Attenuator

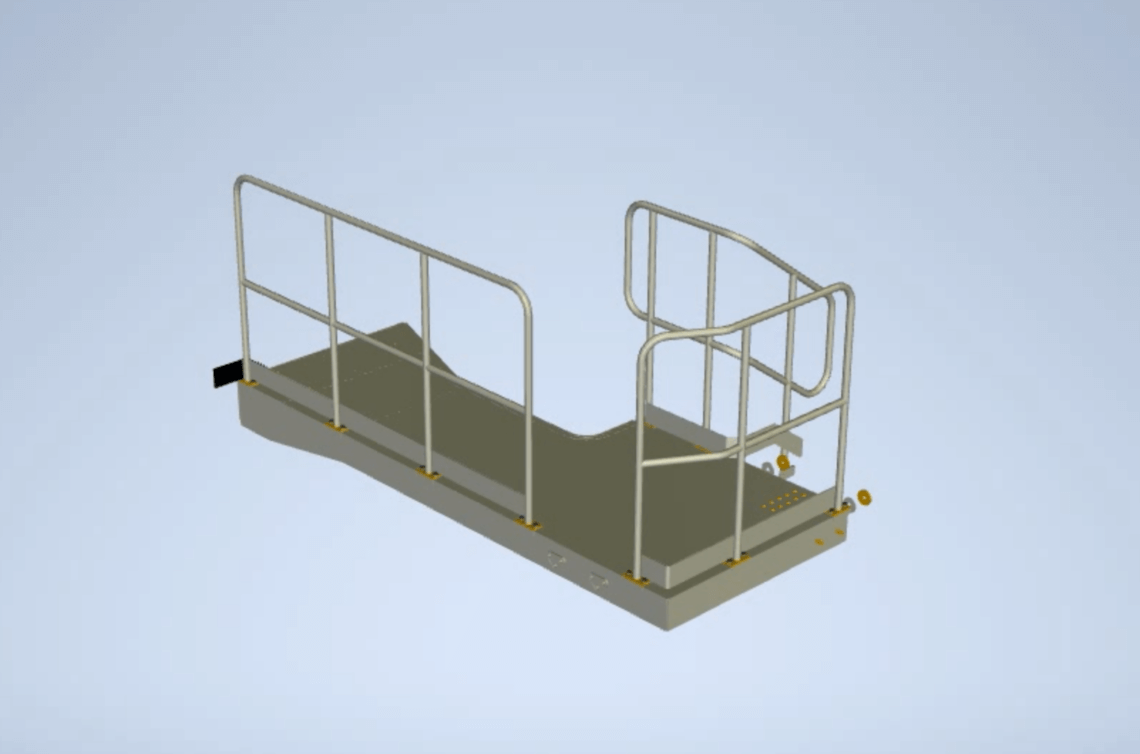

Access Platforms
- Machine Access Platforms, Stairs and Ladders
Hood Panels
- Engine Hood Sound Insulation Paneling

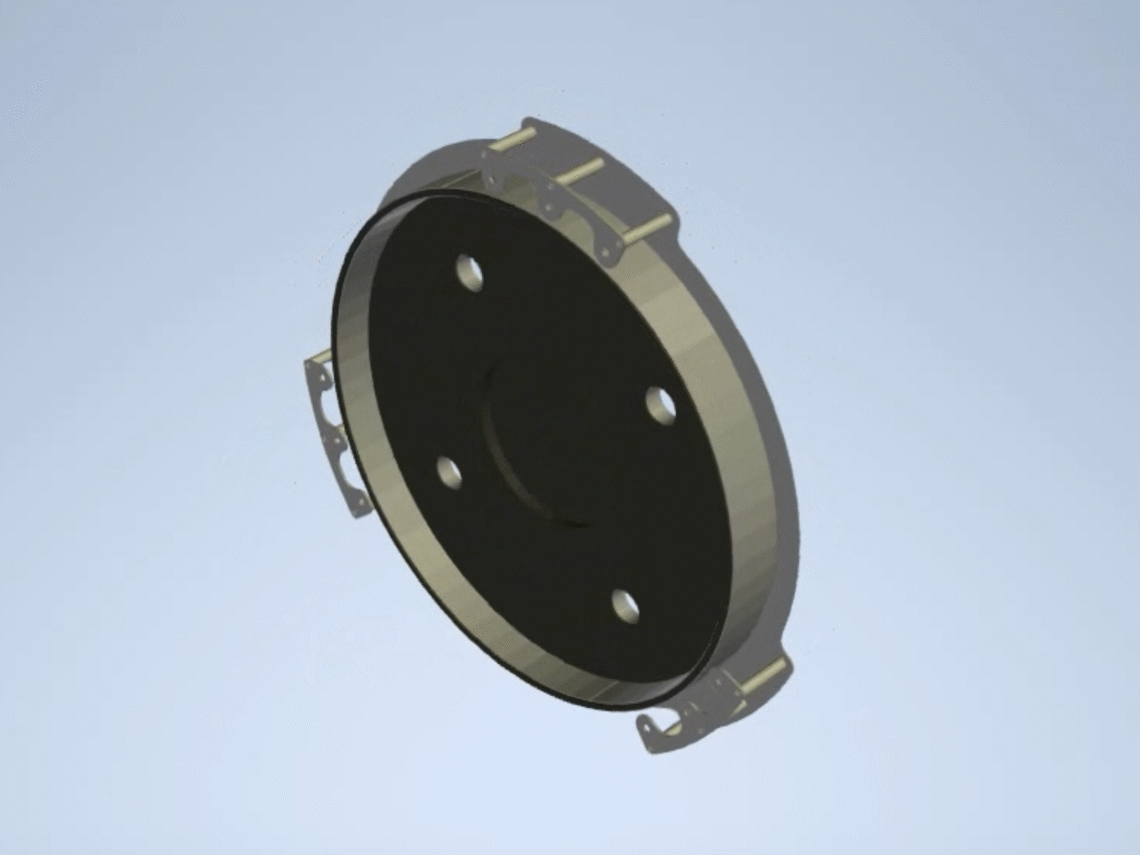

Final Drive Covers
- Sound Insulated Paneling for Final Drive Train
High Voltage Cabinet Acoustic Kit
- Reflective Acoustic Insulation Panels
Retarder Inlet Louvre
- Retarder Attenuator

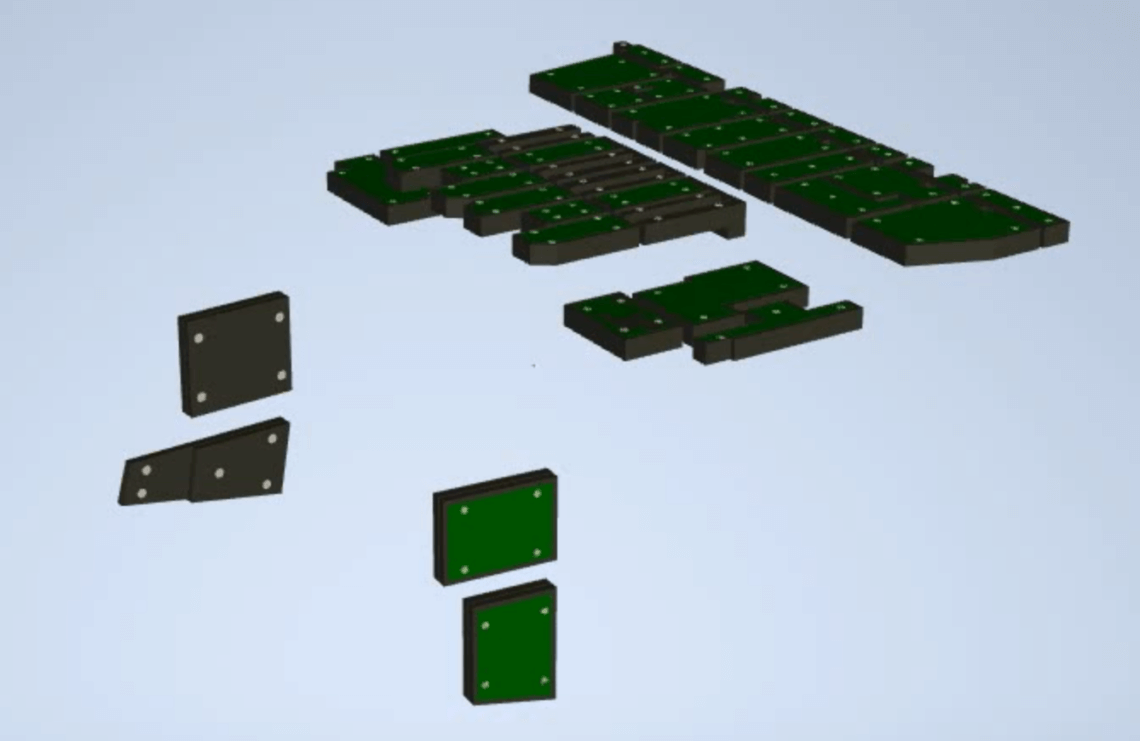

Tray acoustic panel kit
- Reflective Acoustic Insulation Panels

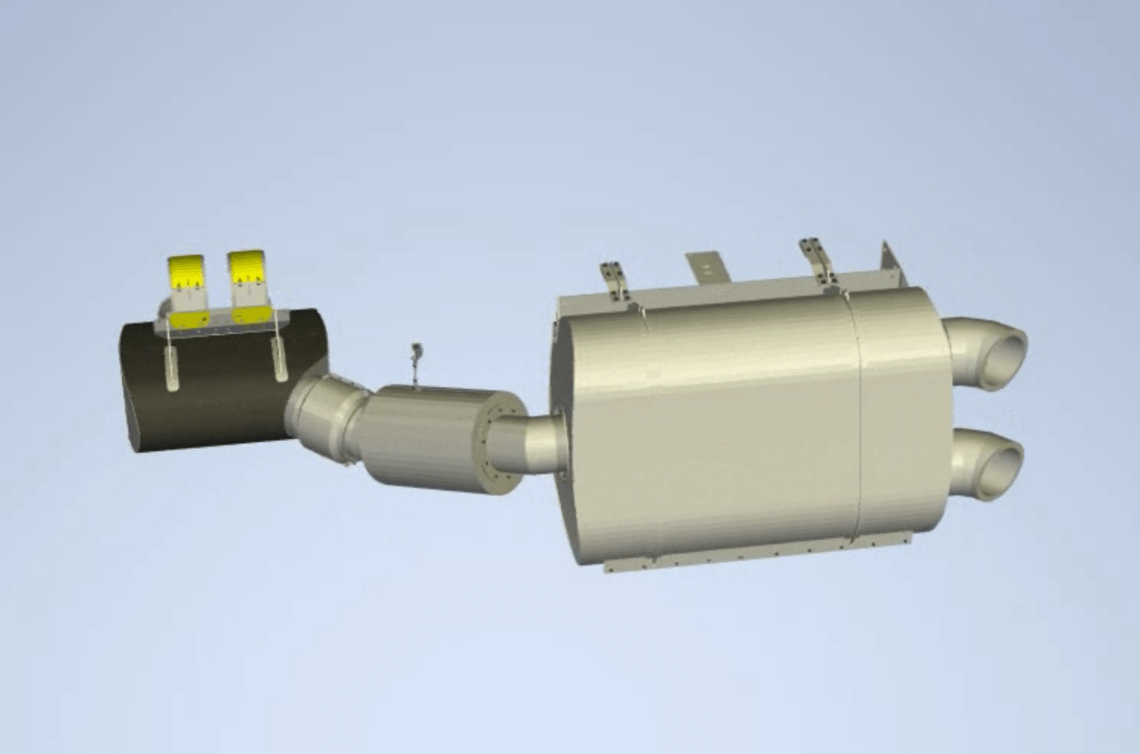

Exhaust Muffler
- Exhaust Muffler System Including Primary Secondary and intermediate Mufflers.
Fire Suppression Platform
- Fire Suppression Bottle Bracket

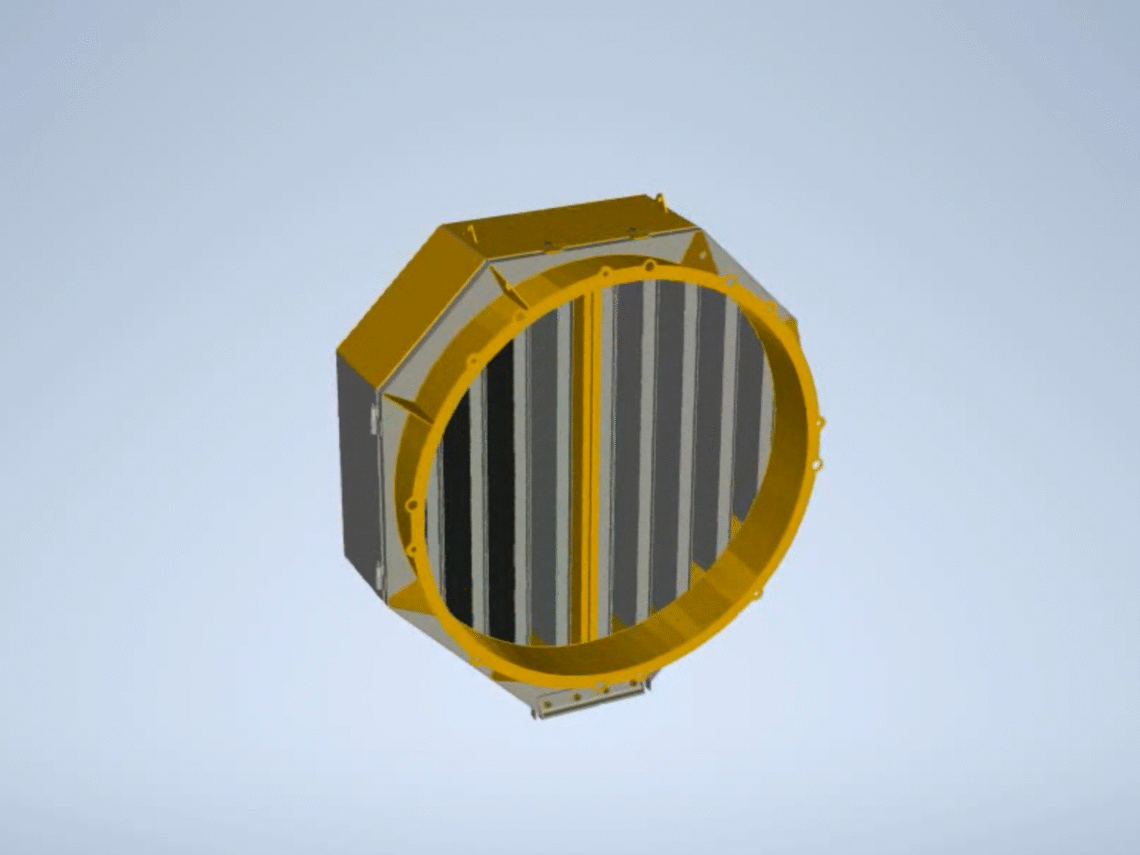

Blower attenuator
- Blower Fan Inlet and Outlet attenuator

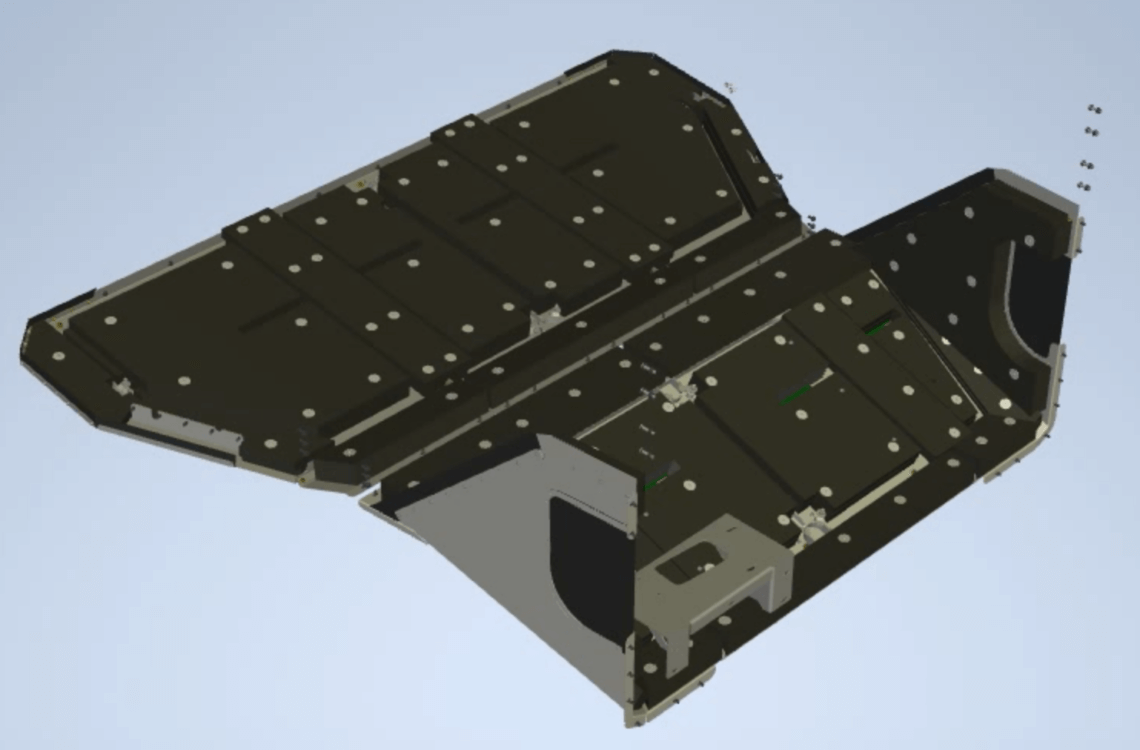

Belly Panels
- Engine Bottom Enclosing Sound Insulated panels

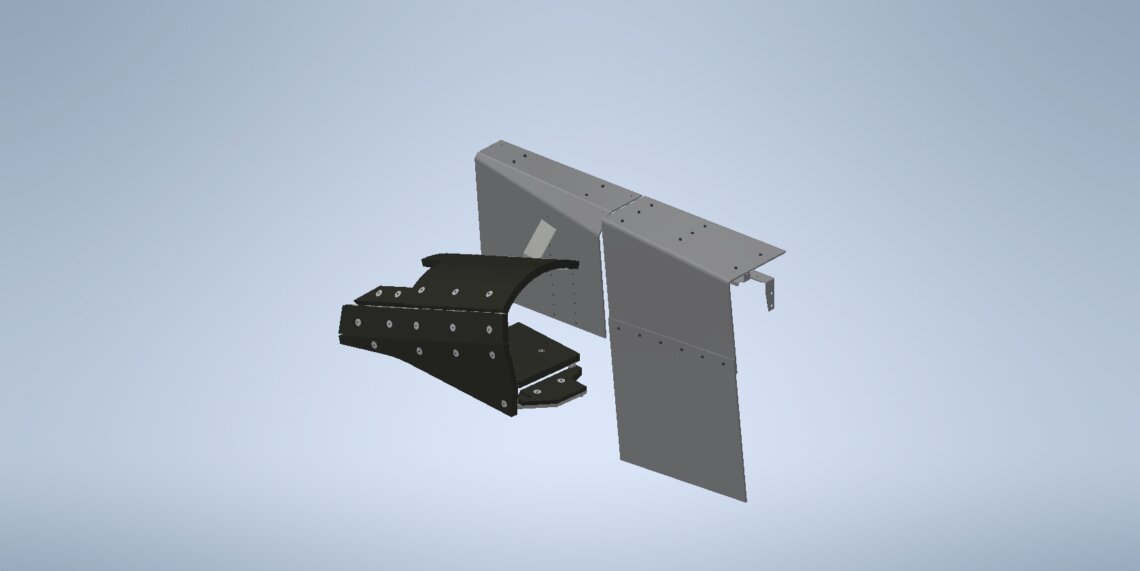

Hydraulic and Oil Pump Acoustic Covers
- Hydraulic system sound insulation panels and covers

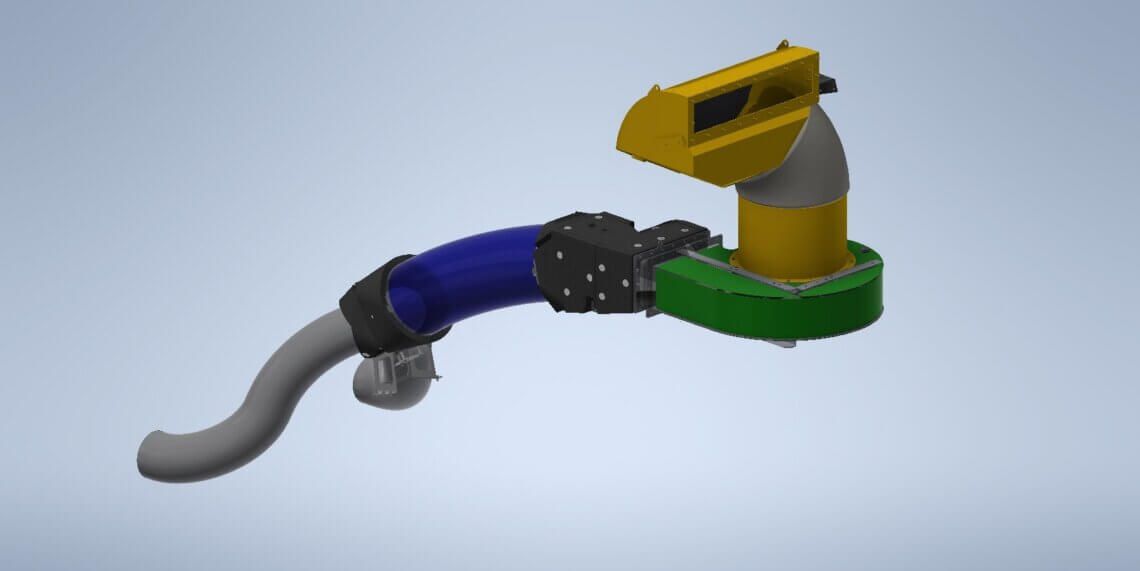

Blower Y Piece Acoustic Panel Kit
- Blower Ducting acoustic covers

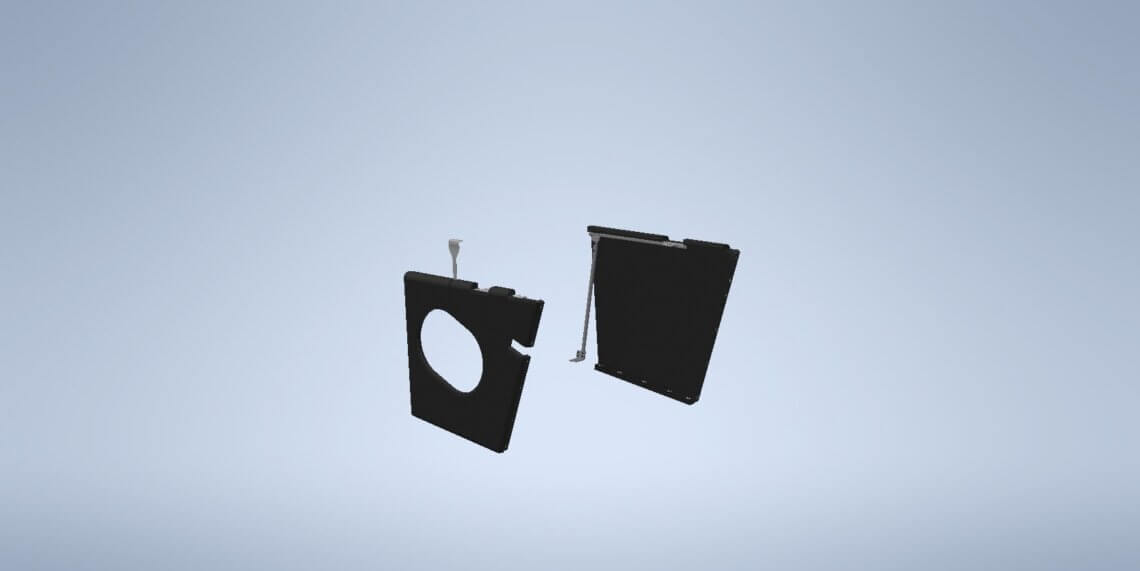

Side Curtains
- Rear engine bay sound insulation covers

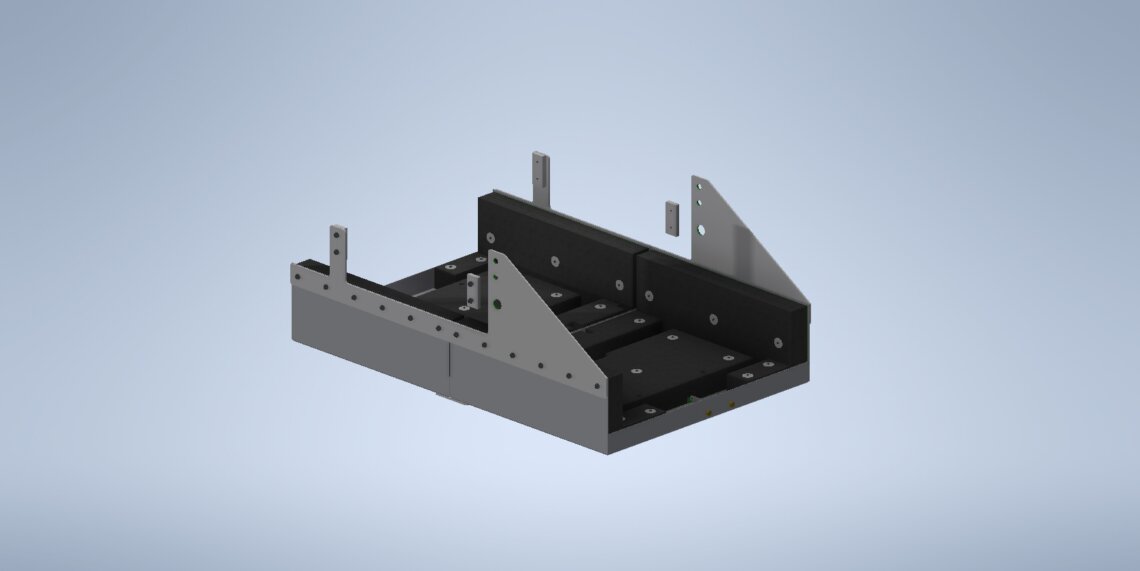

Under Generator Panels
- Generator Sound insulated Panels
